SheerWeave 4400 Openness Factor: ±3% UV Blockage: ±97% Standard Roll Widths: 63”, 84”, 98”, & 126” (126” wide goods are only available in certain colors) Composition: 25% Polyester / 75% Vinyl Mesh/Inch: 42 Warp / 30 Fill Mesh Weight: 20.70 oz./yd2 Yarn Diameter (inch): 0.020 Warp / 0.020 Fill
Fabric Thickness (inch): 0.037
Breaking Strength (lbs): 340 Warp / 250 Fill
Stiffness (Mg): 650 Warp / 450 Fill
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale), CAN/ULC S 109-M-87
Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22
Environmental Certification: GREENGUARD Certified (Indoor Air Quality) and GREENGUARD for children and schools certified, RoHS Compliant
Solar Optical Properties: Fenestration data is available upon request.
Rairoading: Yes | SheerWeave 4100 Openness Factor: ±10%
UV Blockage: ±90% Standard Roll Widths: 63”, 84”, & 98” Composition: 25% Polyester / 75% Vinyl Mesh/Inch: 36 Warp / 25 Fill Mesh Weight: 17.50 oz./yd2 Yarn Diameter (inch): 0.020 Warp / 0.020 Fill
Fabric Thickness (inch): 0.035
Breaking Strength (lbs): 315 Warp / 230 Fill
Stiffness (Mg): 600 Warp / 350 Fill
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale), CAN/ULC S 109-M-87
Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22
Environmental Certification: GREENGUARD Certified (Indoor Air Quality) and GREENGUARD for children and schools certified, RoHS Compliant
Solar Optical Properties: Fenestration data is available upon request.

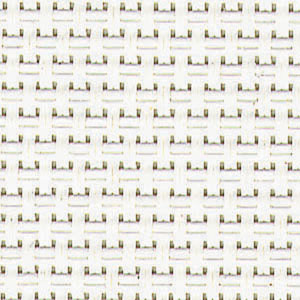

Rairoading: Yes | SheerWeave 4000
Openness Factor: ±5%
UV Blockage: ±95%
Standard Roll Widths: 63”, 84”, 98”, & 126” (126” wide goods are only available in certain colors)
Composition: 25% Polyester / 75% Vinyl
Mesh/Inch: 36 Warp / 30 Fill
Mesh Weight: 19.20 oz./yd2Yarn Diameter (inch): 0.020 Warp / 0.020 Fill Fabric Thickness (inch): 0.036 Breaking Strength (lbs): 315 Warp / 260 Fill Stiffness (Mg): 600 Warp / 400 Fill Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale), CAN/ULC S 109-M-87 Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22
Environmental Certification: GREENGUARD Certified (Indoor Air Quality) and GREENGUARD for children and schools certified, RoHS Compliant
Solar Optical Properties: Fenestration data is available upon request.
Rairoading: Yes |
