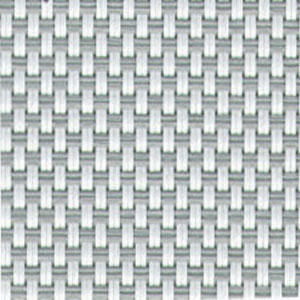

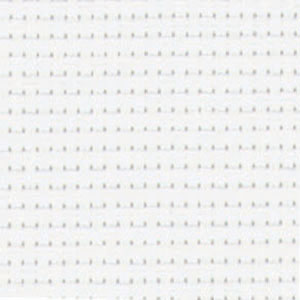

SheerWeave 2000
Openness Factor: ±5%
UV Blockage: ±95%
Standard Roll Widths: 72”, 96”, & 126” (126” wide goods are only available in certain colors)
Composition: 37% Fiberglass / 63% Vinyl
Mesh/Inch: 45 Warp / 45 Fill
Mesh Weight: 14.26 oz./yd2Yarn Diameter (inch): 0.013 Warp / 0.013 Fill Fabric Thickness (inch): 0.019 Breaking Strength (lbs): 260 Warp / 270 Fill Stiffness (Mg): 200 Warp / 240 Fill Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22 Solar Properties: Fernestation data is available upon request Railroading: Yes | SheerWeave 2100 Openness Factor: ±10% UV Blockage: ±90% Standard Roll Widths: 72” & 96” Composition: 37% Fiberglass / 63% Vinyl Mesh/Inch: 45 Warp / 36 Fill Mesh Weight: 12.40 oz./yd2 Yarn Diameter (inch): 0.013 Warp / 0.013 Fill
Fabric Thickness (inch): 0.020 Breaking Strength (lbs): 260 Warp / 200 Fill Stiffness (Mg): 200 Warp / 240 Fill Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22 Solar Properties: Fernestation data is available upon request Railroading: Yes |
