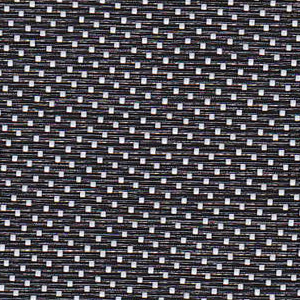

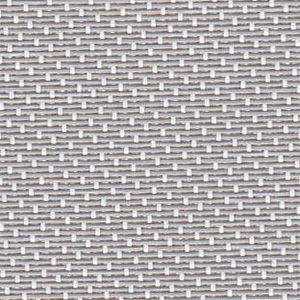

SheerWeave 2701
Openness Factor: ±1%
UV Blockage: ±99%
Standard Roll Widths: 63”, 98”
Composition: 36% Fiberglass / 64% Vinyl
Mesh/Inch: 56 Warp / 49 Fill
Mesh Weight: 14.6 oz./yd2Yarn Diameter (inch): 0.011 Warp / 0.013 Fill Fabric Thickness (inch): 0.027 Breaking Strength (lbs): 264 Warp / 377 Fill Stiffness (Mg): 260 Warp / 325 Fill Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 | SheerWeave 2703 Openness Factor: ±3% UV Blockage: ±97% Standard Roll Widths: 63”, 98” Composition: 36% Fiberglass / 64% Vinyl Mesh/Inch: 56 Warp / 49 Fill Mesh Weight: 14.0 oz./yd2 Yarn Diameter (inch): 0.011 Warp / 0.013 Fill
Fabric Thickness (inch): 0.028
Breaking Strength (lbs): 247 Warp / 312 Fill
Stiffness (Mg): 260 Warp / 247 Fill
Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 | SheerWeave 2705 Openness Factor: ±5% UV Blockage: ±95% Standard Roll Widths: 63”, 98” Composition: 34% Fiberglass / 66% Vinyl Mesh/Inch: 56 Warp / 49 Fill Mesh Weight: 11.8 oz./yd2 Yarn Diameter (inch): 0.011 Warp / 0.011 Fill
Fabric Thickness (inch): 0.025
Breaking Strength (lbs): 279 Warp / 240 Fill
Stiffness (Mg): 280 Warp / 270 Fill
Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 | SheerWeave 2710
Openness Factor: ±10% UV Blockage: ±90% Standard Roll Widths: 63”, 98”
Composition: 34% Fiberglass / 66% Vinyl
Mesh/Inch: 56 Warp / 49 Fill Mesh Weight: 10.4 oz./yd2 Yarn Diameter (inch): 0.011 Warp / 0.011
Fill
Fabric Thickness (inch): 0.025
Breaking Strength (lbs): 283 Warp / 220 Fill
Stiffness (Mg): 418 Warp / 257 Fill
Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 |
