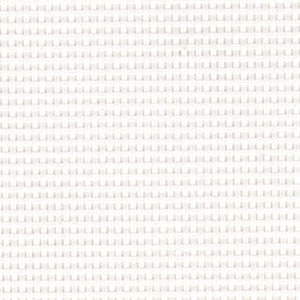

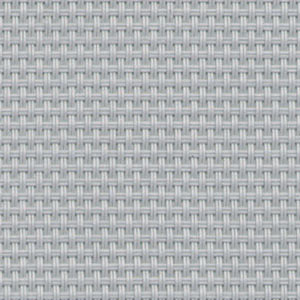

SheerWeave 2390 Openness Factor: ±5% UV Blockage: ±95% Standard Roll Widths: 63”, 98”, & 126” (126” wide goods are only available in certain colors)
Composition: 35% Fiberglass / 65% Vinyl Mesh/Inch: 56 Warp / 49 Fill Mesh Weight: 11.90 oz./yd2 Yarn Diameter (inch): 0.011 Warp / 0.011 Fill
Fabric Thickness (inch): 0.017
Breaking Strength (lbs): 250 Warp / 235 Fill
Stiffness (Mg): 190 Warp / 220 Fill
Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 | SheerWeave 2410 Openness Factor: ±3% UV Blockage: ±97%
Standard Roll Widths: 63”, 98”, & 126” (126” wide goods are only available in certain colors) Composition: 35% Fiberglass / 65% Vinyl Mesh/Inch: 56 Warp / 49 Fill Mesh Weight: 13.90 oz./yd2 Yarn Diameter (inch): 0.011 Warp / 0.013 Fill
Fabric Thickness (inch): 0.019
Breaking Strength (lbs): 255 Warp / 325 Fill
Stiffness (Mg): 212 Warp / 233 Fill
Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 | SheerWeave 2500
Openness Factor: ±1%
UV Blockage: ±99%
Standard Roll Widths: 63”, 98”
Composition: 37% Fiberglass / 63% Vinyl Mesh/Inch: 56 Warp / 49 Fill Mesh Weight: 16.1 oz./yd2 Yarn Diameter (inch): 0.011 Warp / 0.013 Fill
Fabric Thickness (inch): 0.024
Breaking Strength (lbs): 380 Warp / 338 Fill
Stiffness (Mg): 249 Warp / 224 Fill
Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified
Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 | SheerWeave 2360
Openness Factor: ±10%
UV Blockage: ±90%
Standard
Roll Widths: 63” & 98”
Composition: 35% Fiberglass / 65% Vinyl
Mesh/Inch: 56 Warp / 38 Fill
Mesh Weight: 10.50 oz./yd2Yarn Diameter (inch): 0.011 Warp / 0.011 Fill
Fabric Thickness (inch): 0.017 Breaking Strength (lbs): 255 Warp / 180 Fill
Stiffness (Mg): 225 Warp / 200 Fill
Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™)
GREENGUARD for Children and Schools Certified Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM #1 (small scale), NFPA 101 (Class A Rating),
UBC (Class I), British Standard 5867, NFPA 701 TM #2 (large scale)
Bacteria & Fungal Resistance: ASTM-E 2180 |
