COLOR:

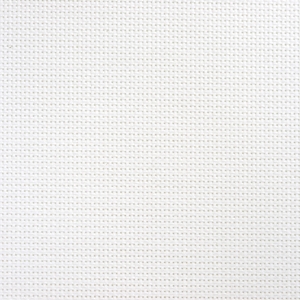

    • 0202-White/White

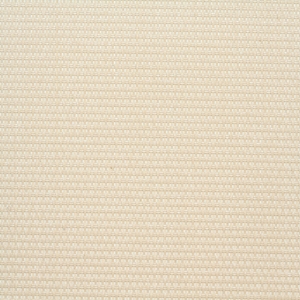

    • 02020-Linen/Linen

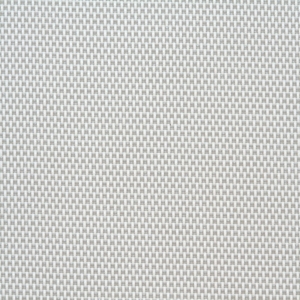

    • 0207-White/Pearl

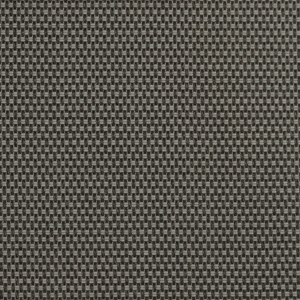

    • 3001-Charcoal/Gray

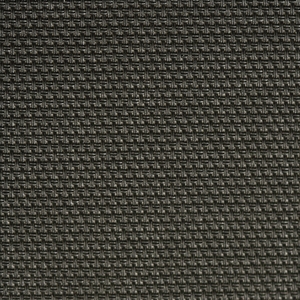

    • 3030-Charcoal/Charcoal

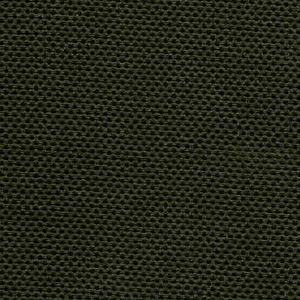

    • 3061-Charcoal/Cocoa


    Update price

    E-Screen

    Flame Retardant

    Available in  7501 1%, 7503 3%, 7505 5% & 7510 10% Openness Fabrics

    GreenGuard Children & Schools Certified

    EconoScreen 1%

    Openness Factor: ±1%

    UV Blockage: ±99%

    Standard Roll Widths: 98”, 122”

    Composition: 36% Fiberglass/64% Vinyl

    Mesh/Inch: 26 Warp / 19.5 Wreft

    Mesh Weight: 13.3 oz./yd2

    Fabric Thickness (inch): ±0.020

    Breaking Strength (lbs): 280 Warp / 250 Weft

    Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™) GREENGUARD for Children and Schools Certified

    Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM#1 (small scale), NFPA 101 (Class A Rating), UBC (Class I), and BS 5867

    Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22

    Solar Optical Properties: Fenestation date is available upon request

    Railroading: Yes

    EconoScreen 3%

    Openness Factor: ±3%

    UV Blockage: ±97%

    Standard Roll Widths: 98”, 122”

    Composition: 36% Fiberglass/64% Vinyl

    Mesh/Inch: 26 Warp / 16 Wreft

    Mesh Weight: 12.3 oz./yd2

    Fabric Thickness (inch): ±0.020

    Breaking Strength (lbs): 280 Warp / 250 Weft

    Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™) GREENGUARD for Children and Schools Certified

    Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM#1 (small scale), NFPA 101 (Class A Rating), UBC (Class I), and BS 5867

    Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22

    Solar Optical Properties: Fenestation date is available upon request

    Railroading: Yes

    EconoScreen 5%

    Openness Factor: ±5%

    UV Blockage: ±95%

    Standard Roll Widths: 78", 98”, 122”

    Composition: 36% Fiberglass/64% Vinyl

    Mesh/Inch: 56 Warp / 51 Wreft

    Mesh Weight: 12.1 oz./yd2

    Fabric Thickness (inch): ±0.020

    Breaking Strength (lbs): 290 Warp / 280 Weft

    Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™) GREENGUARD for Children and Schools Certified

    Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM#1 (small scale), NFPA 101 (Class A Rating), UBC (Class I), and BS 5867

    Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22

    Solar Optical Properties: Fenestation date is available upon request

    Railroading: Yes

    EconoScreen 10%

    Openness Factor: ±10%

    UV Blockage: ±90%

    Standard Roll Widths: 78", 98”, 122”

    Composition: 36% Fiberglass/64% Vinyl

    Mesh/Inch: 56 Warp / 38Wreft

    Mesh Weight: 10.3 oz./yd2

    Fabric Thickness (inch): ±0.022

    Breaking Strength (lbs): 290 Warp / 280 Weft

    Environmental Certification: GREENGUARD Indoor Air Quality Certified for low emissions (LEED™) GREENGUARD for Children and Schools Certified

    Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM#1 (small scale), NFPA 101 (Class A Rating), UBC (Class I), and BS 5867

    Bacteria & Fungal Resistance: ASTM-G21, ASTM-G22

    Solar Optical Properties: Fenestation date is available upon request

    Railroading: Yes
